Troax Mesh Partitioning

About Troax mesh partitioning

A flexible, simple to install and very strong system

People and valuables are protected from harm/theft. The system is a modular system of mesh panels and doors explicitly designed for your exact requirements.

The system is flexible, simple to install and very strong, with fully welded mesh contained within a robust steel framework. The mesh partitions are specially adapted for your needs using the system’s smart accessories.

Download Brochure (8MB)

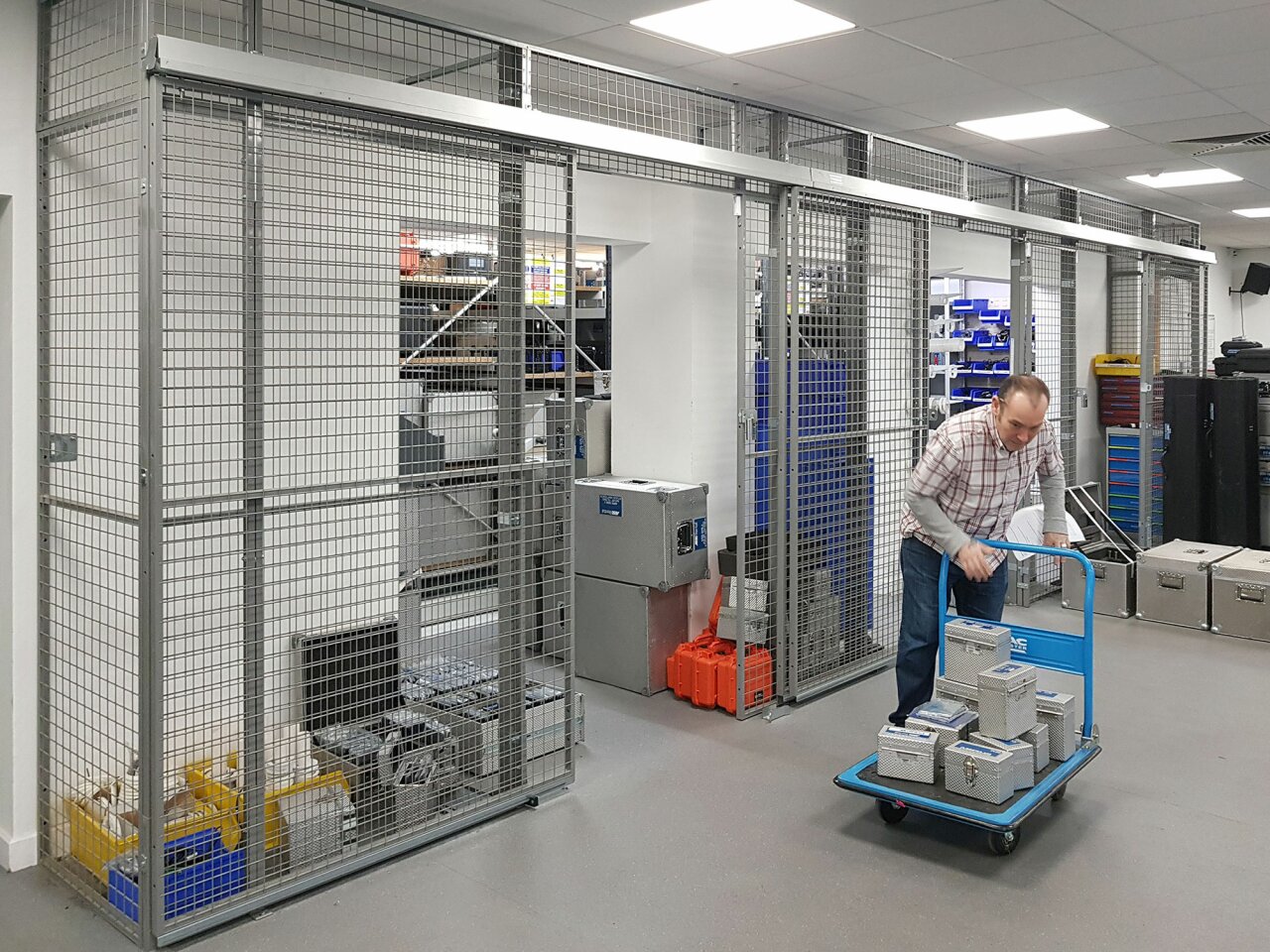

Mesh Partitions Used For A Storage Area.

Options: Panel types

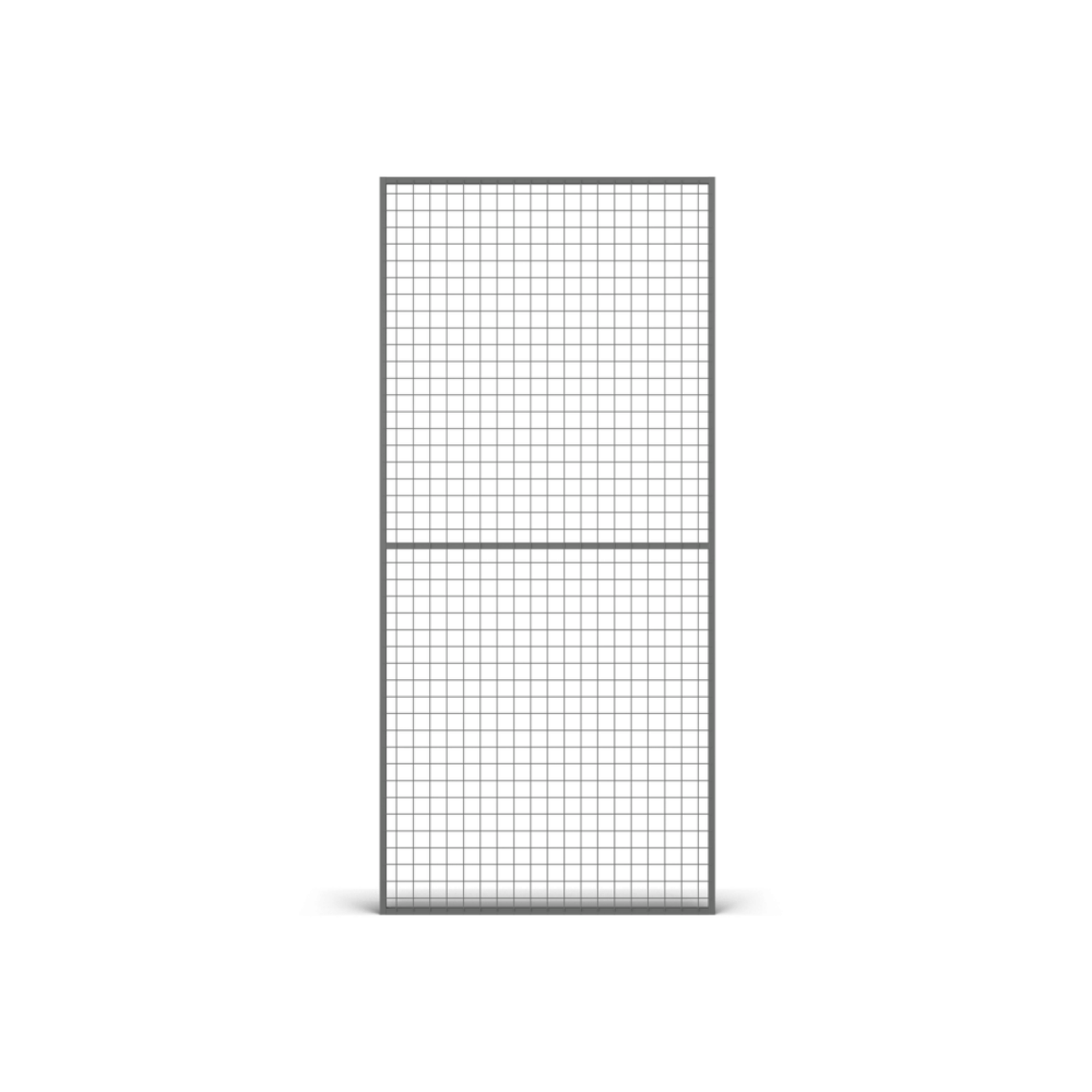

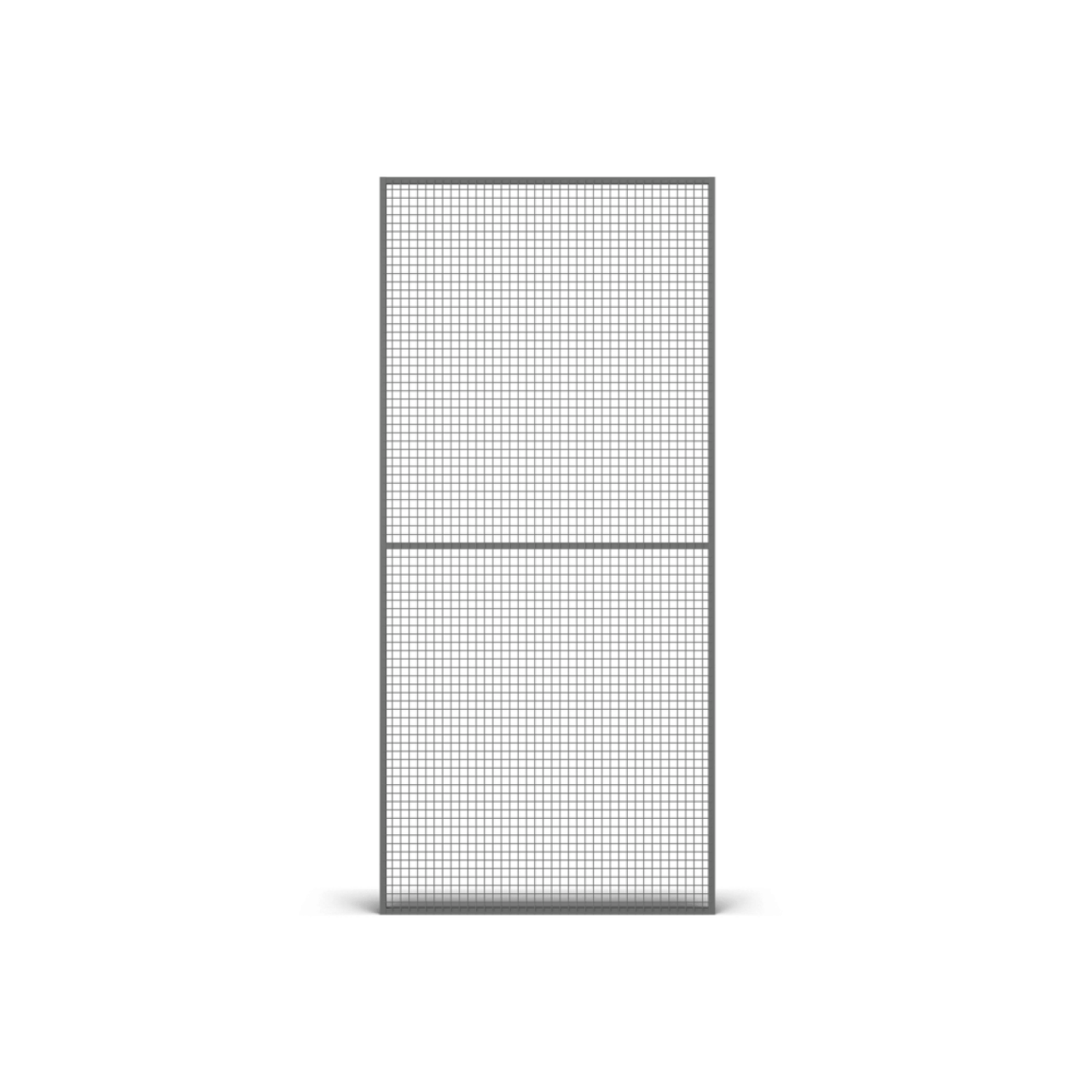

Panel UX 450 partitioning

Panel UX 450 is available in 2 heights, 2200 mm and 800 mm, and in 8 widths between 200 mm up to 1500 mm. The mesh, constructed from press welded 3x3.75 mm wires with mesh aperture 50x50 mm, is welded to a 19x19 mm tubular frame for added strength.

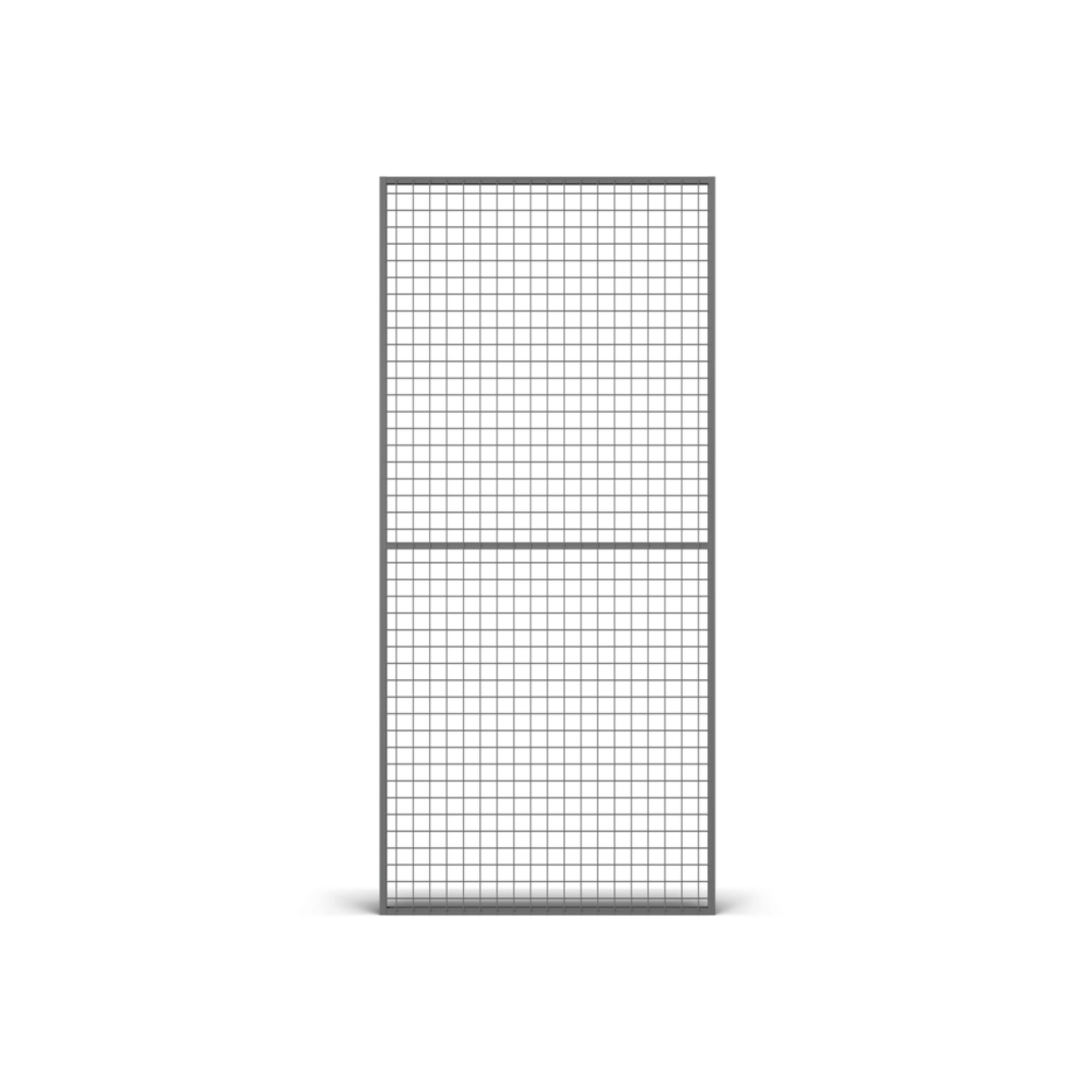

Panel UR 350 partitioning

Panel UR 350 is available in 2 heights, 2200 mm and 800 mm, and in 8 widths between 200 mm up to 1500 mm. The mesh panels can be modified on-site to fit any space, providing security where required. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 50x50 mm, is welded to a 19x19 mm tubular frame for added strength.

Panel UR 325 partitioning

Panel UR 325 is available in 2 heights, 2200 mm and 800 mm, and in 7 widths between 200 mm up to 1500 mm. The mesh panels can be modified on-site to fit any space, providing security where required. UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 25x25 mm, is welded to a 19x19 mm tubular frame for added strength.

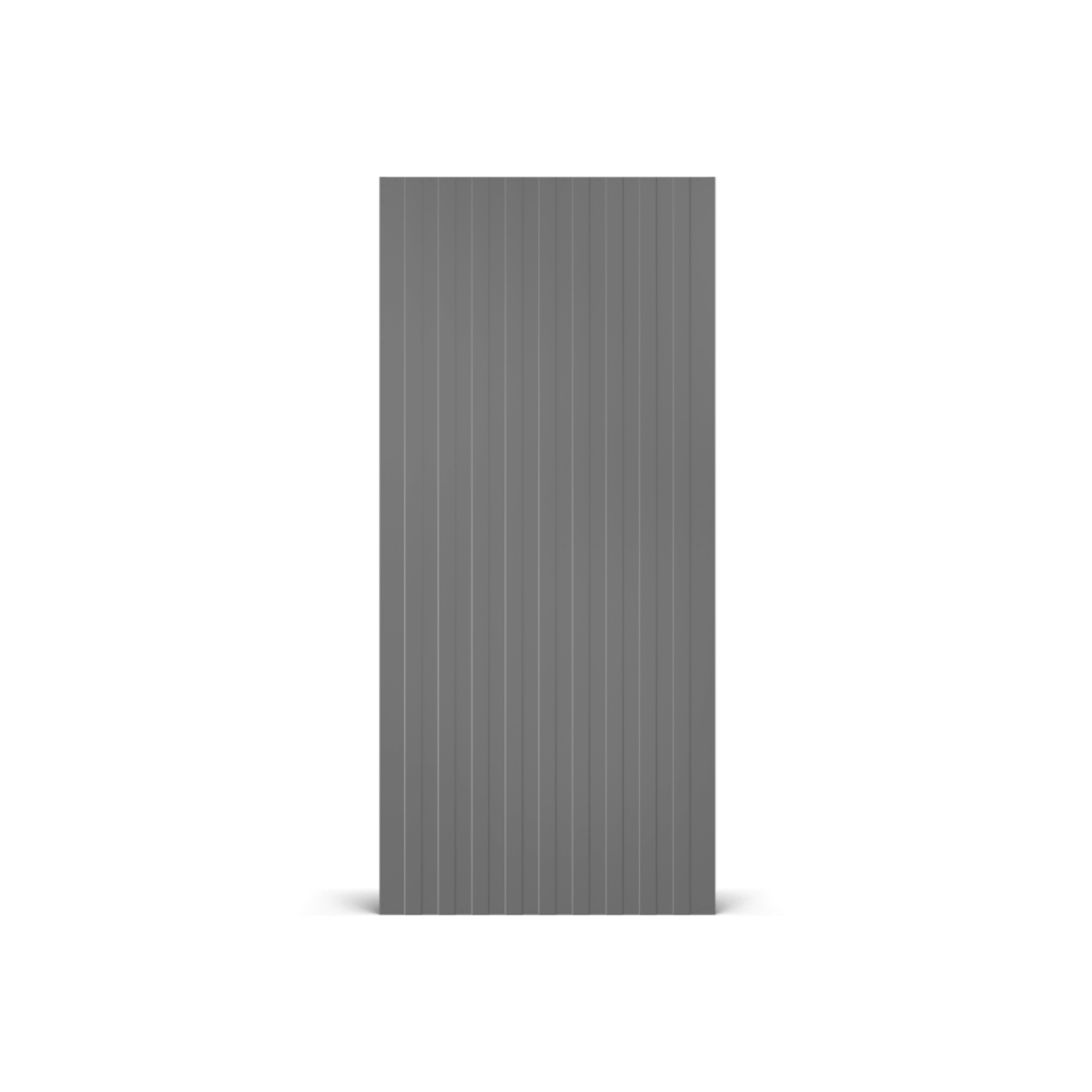

Panel UR SP

UR SP is a steel sheet partition panel that is ideal when protection from outside view is requested. The profiled steel sheet 0,7 mm is welded to a 19x19 mm frame for added strength. Panels are available in 6 widths, from 200 mm to 1200 mm.

Options: door types

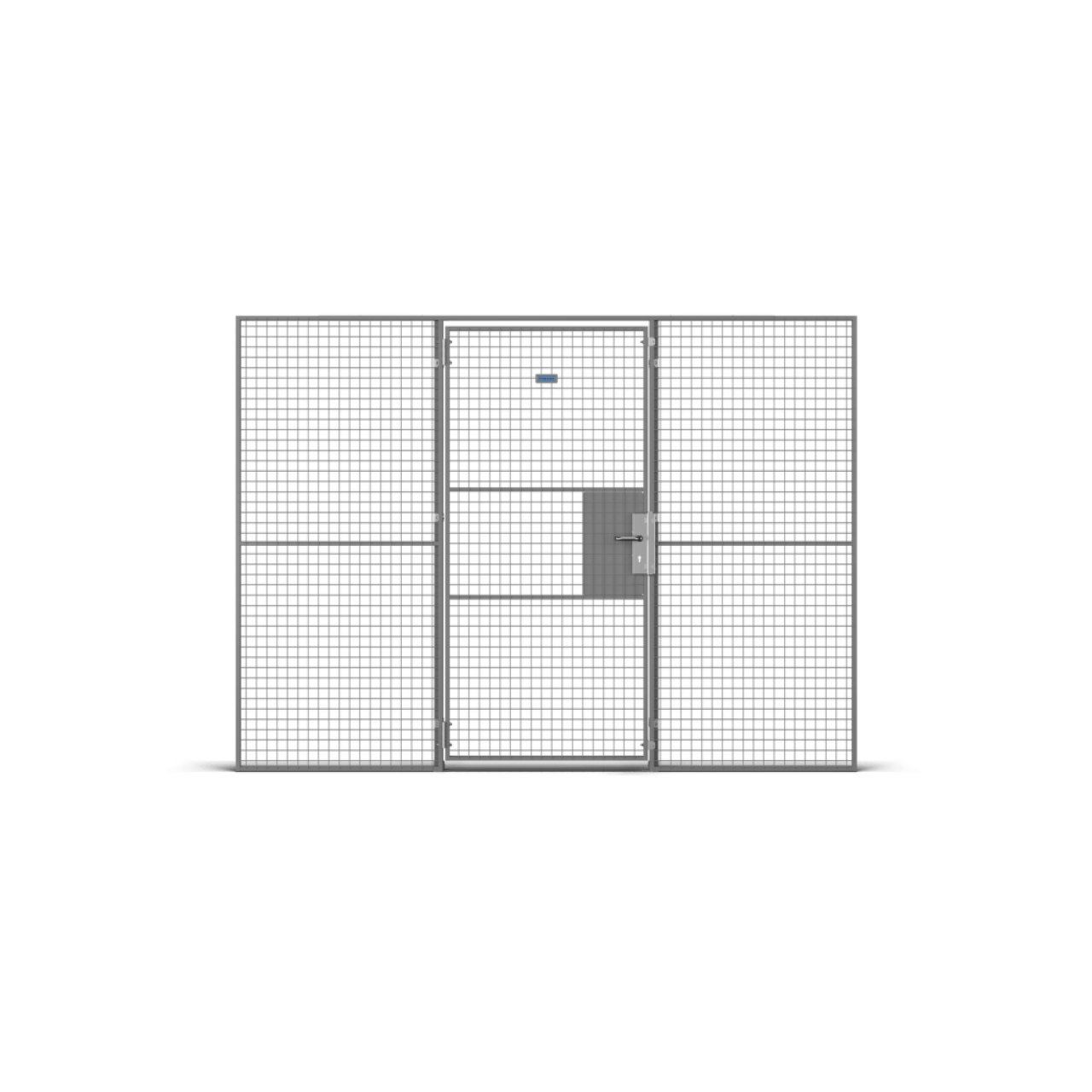

Single hinged door

Our Partitioning single hinged doors are available both with our door leaf panels or made from our wall panels. Standard door widths with door leaf panels are from 980 mm to 2940 mm and standard door widths with wall panels are from 800 mm to 3000 mm. Opening heights are from 2200 mm to 4400 mm.

Lock options are padlock, euro cylinder, assa cylinder, electric strike, panic bar and electric lock with knob & handle.

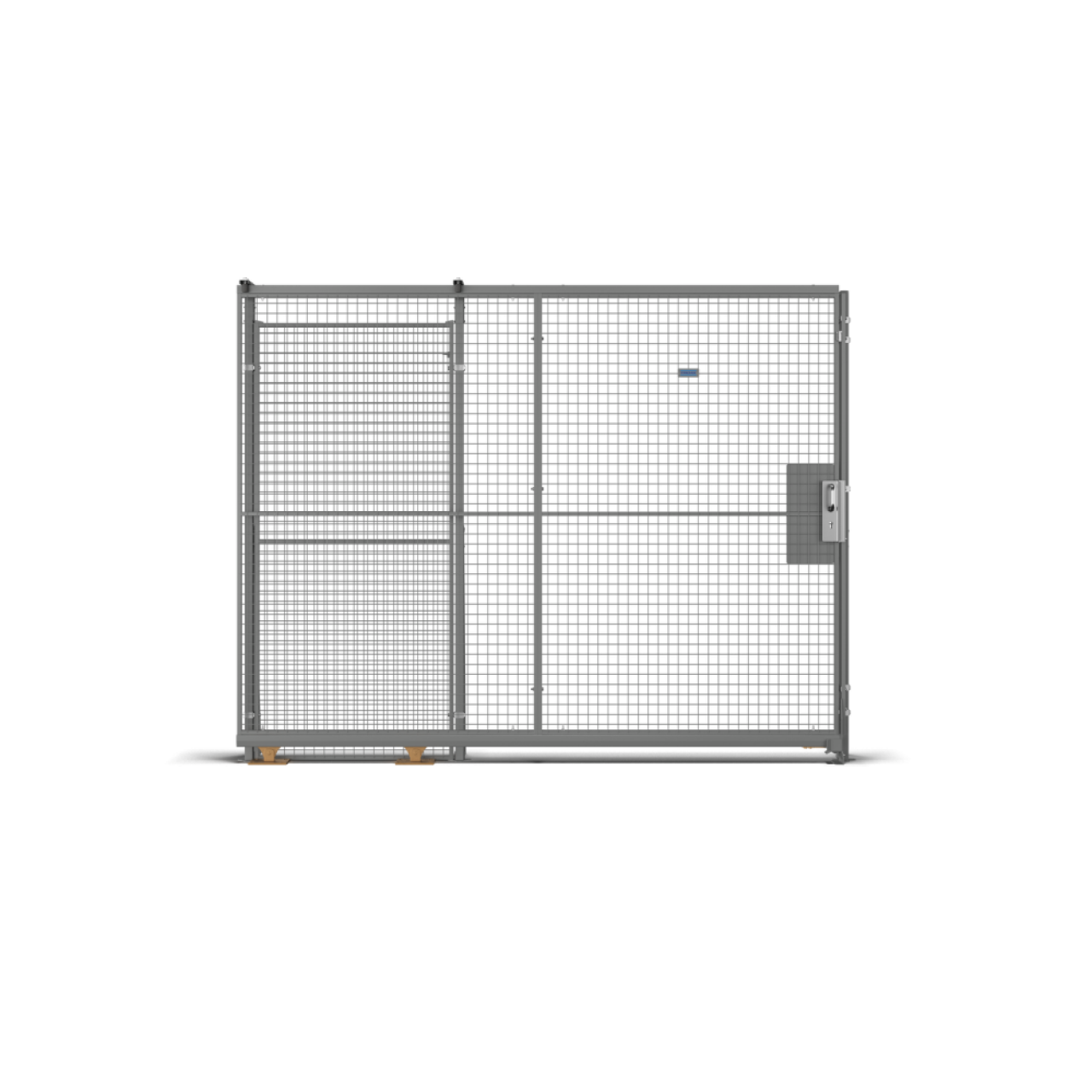

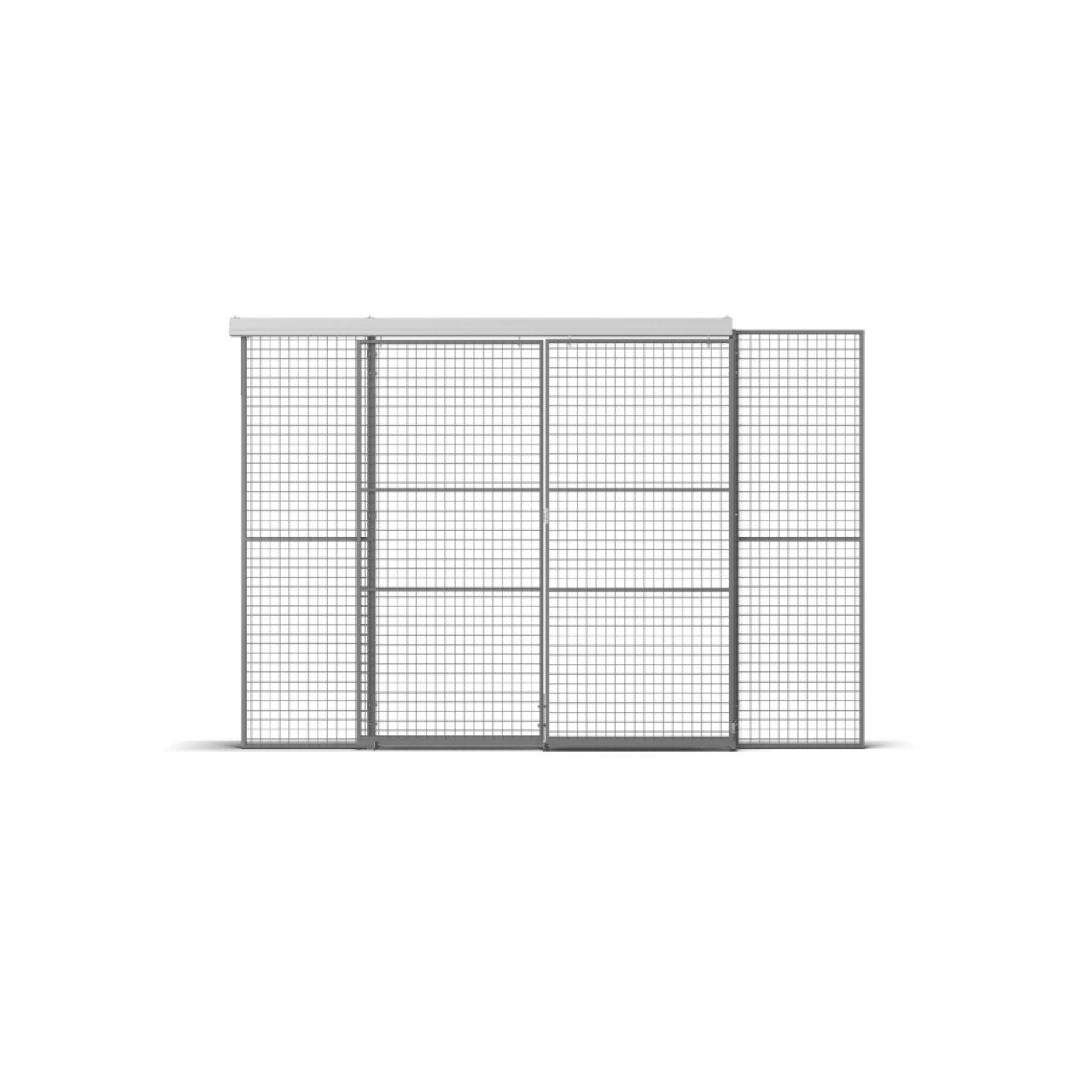

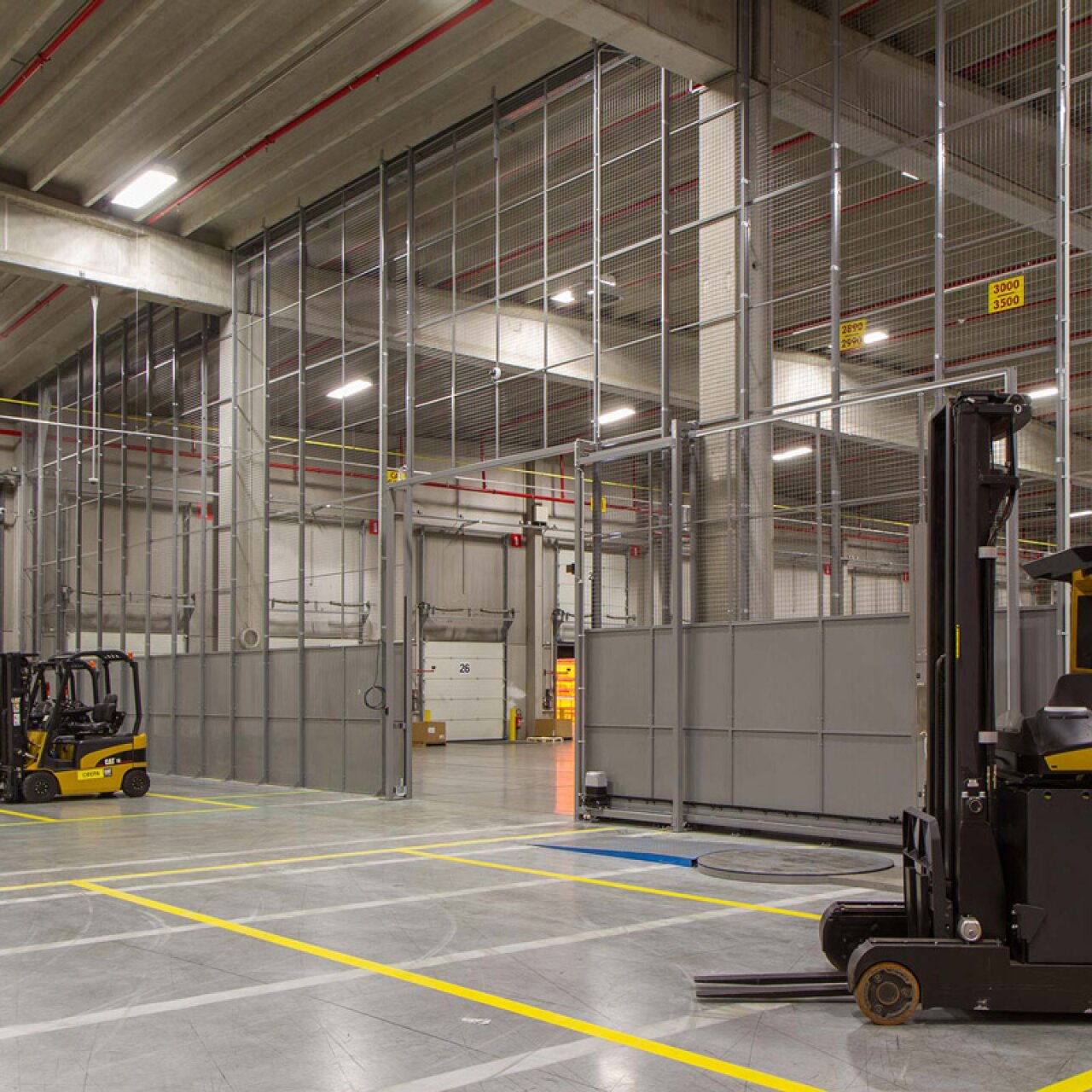

Single sliding door

Our Partitioning single sliding doors are available both with our door leaf panels or made from our wall panels. Standard door widths with door leaf panels are from 980 mm to 2940 mm and standard door widths with wall panels are from 800 mm to 3000 mm. Opening heights are from 2200 mm to 6600 mm.

The runners above the door slide in a single-track aluminium top rail and a guide rail beneath the door steer it firmly in the right direction.

Lock options are padlock, euro cylinder, assa cylinder, electric strike and electromagnet.

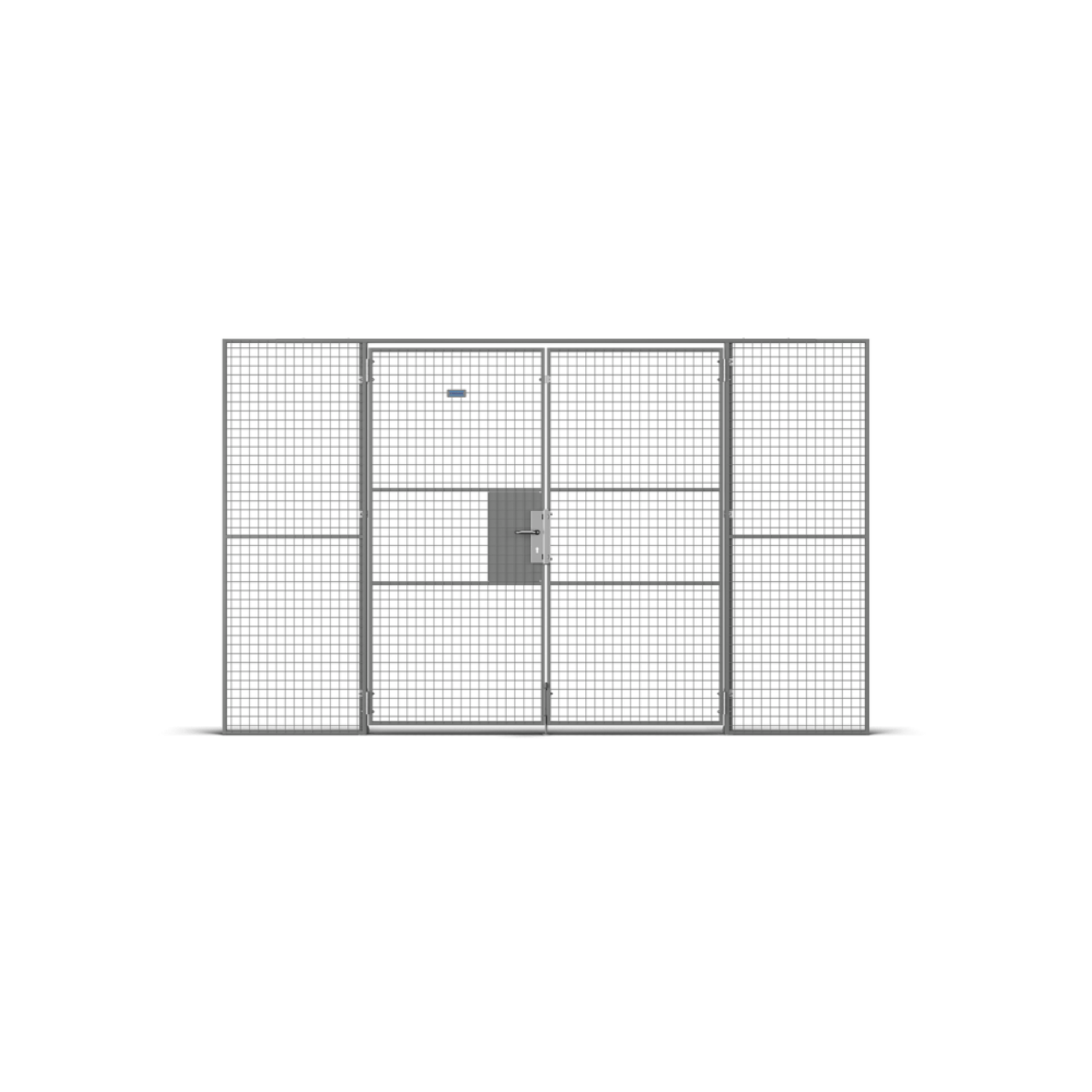

Double hinged door

Our Partitioning double hinged doors are available both with our door leaf panels or made from our wall panels. Standard door widths with door leaf panels are from 980+980 mm to 2940+2940 mm and standard door widths with wall panels are from 800+800 mm to 3000+3000 mm. Opening heights are from 2200 mm to 4400 mm.

Lock options are padlock, euro cylinder and assa cylinder.

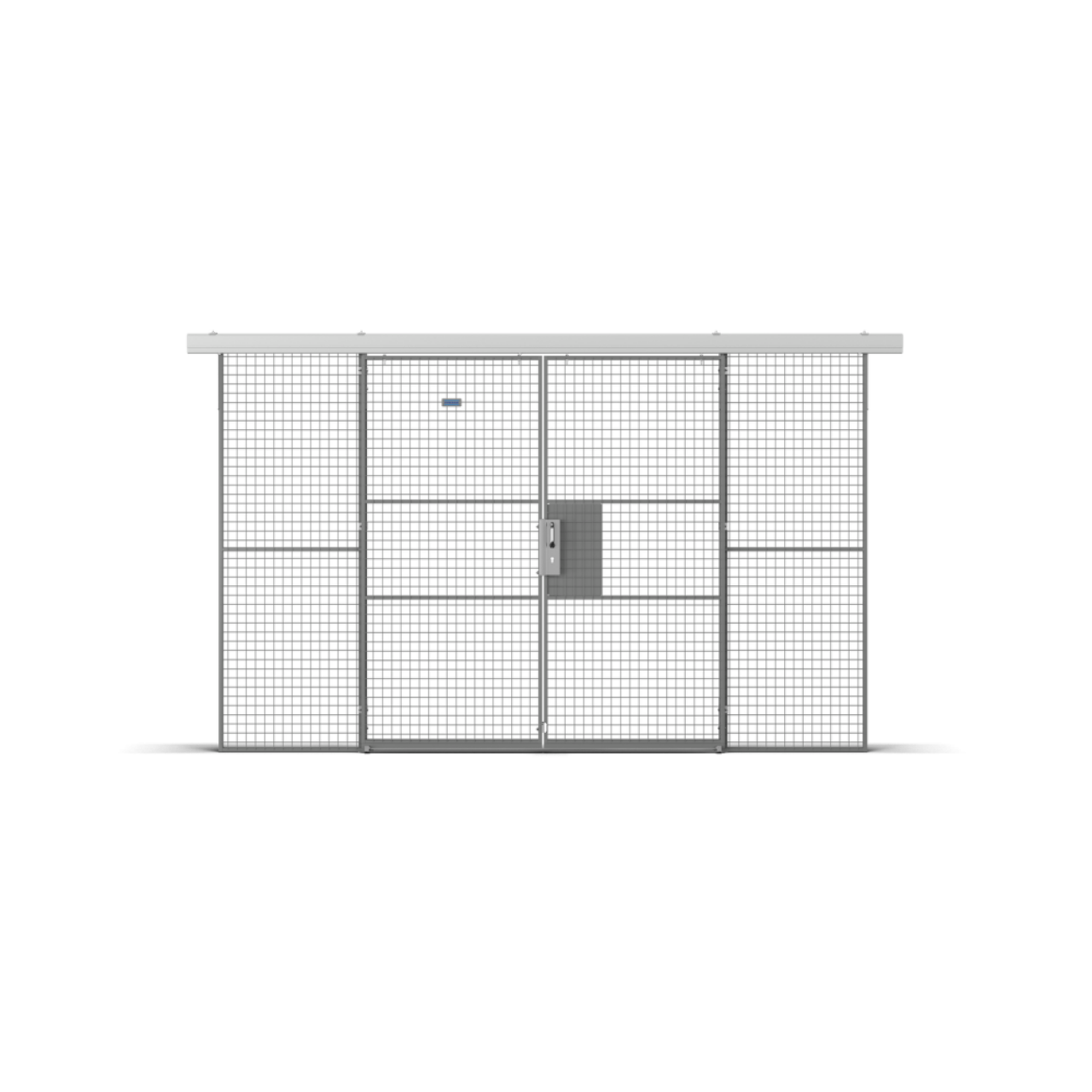

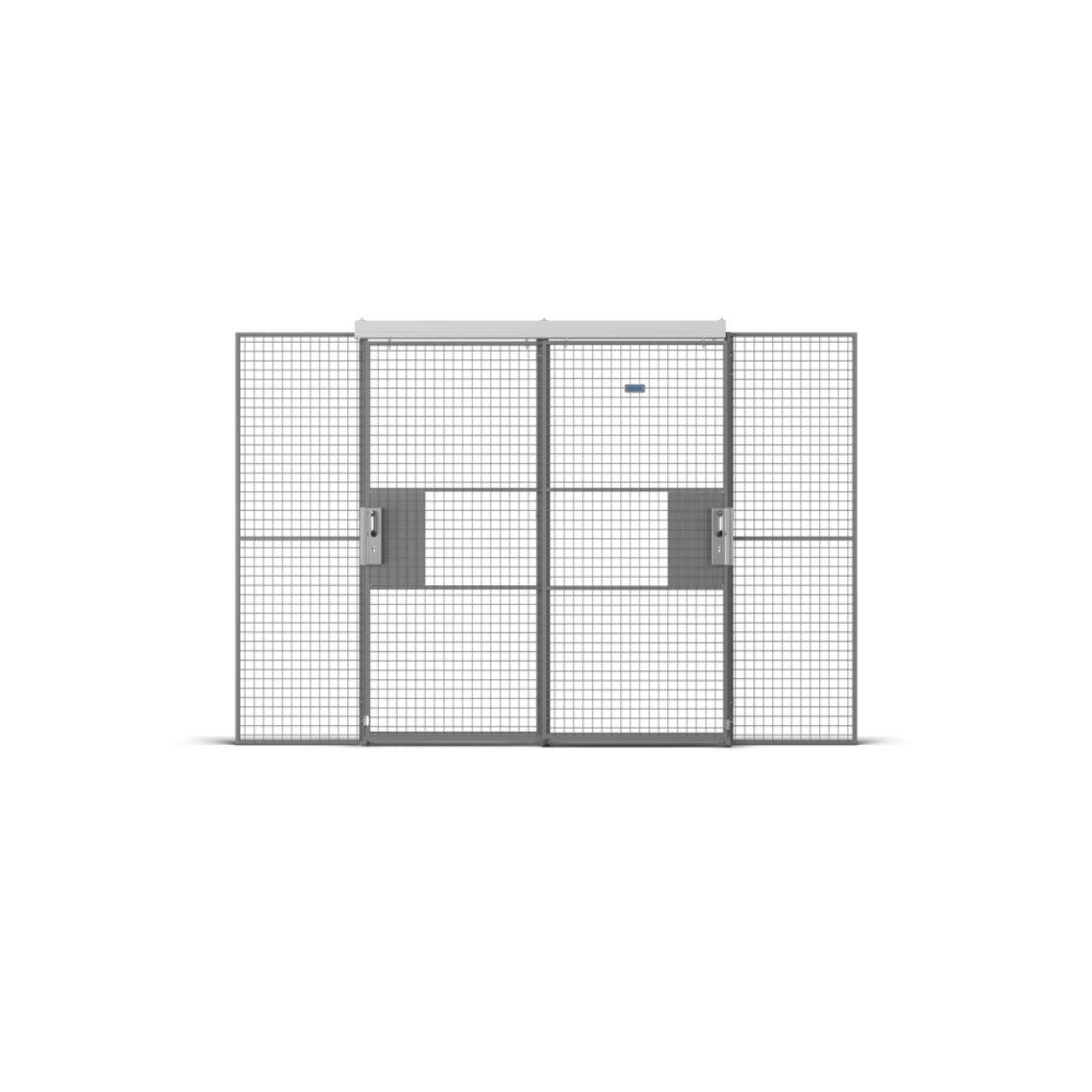

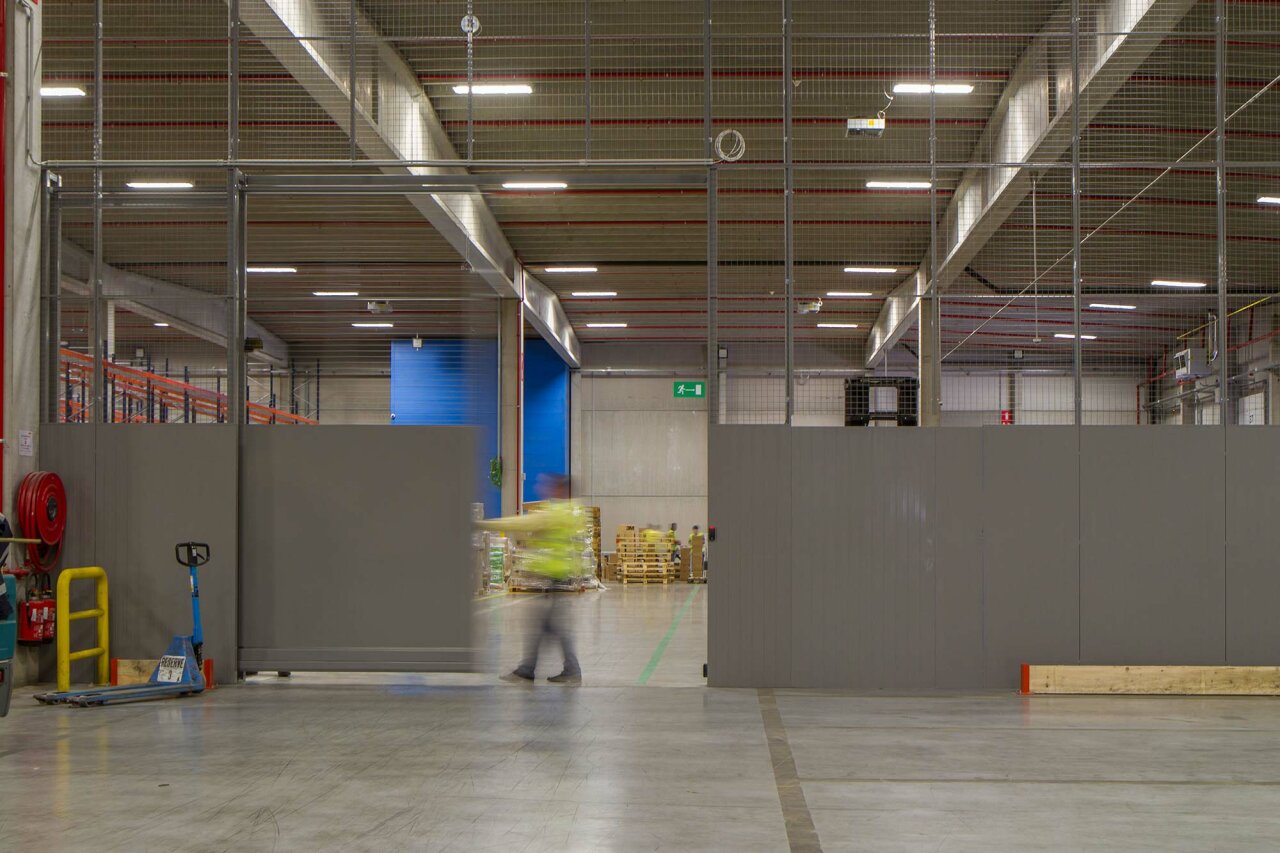

Double Sliding Door in Single Rail

Our Partitioning double sliding doors in singe rail are available both with our door leaf panels or made from our wall panels. Standard door widths with door leaf panels are from 980+980 mm to 2940+2940 mm and standard door widths with wall panels are from 800+800 mm to 3000+3000 mm. Opening heights are from 2200 mm to 6600 mm.

The runners above the doors slide in a single-track aluminium top rail and guide rails beneath the doors steer them firmly in the right direction, one to the left and one to the right.

Lock options are padlock, euro cylinder and assa cylinder.

Double sliding door in double rails

Our Partitioning double sliding doors in double rails are available both with our door leaf panels or made from our wall panels. Standard door widths with door leaf panels are from 980+980 mm to 2940+2940 mm and standard door widths with wall panels are from 800+800 mm to 3000+3000 mm. Opening heights are from 2200 mm to 6600 mm. The runners above the doors slide in a double-track aluminium top rail and guide rails beneath the doors steer them firmly in the right direction, one door to the left and the other one to the right. The doors overlap each other when opening, as there are two tracks.

Lock options are padlock, euro cylinder and assa cylinder.

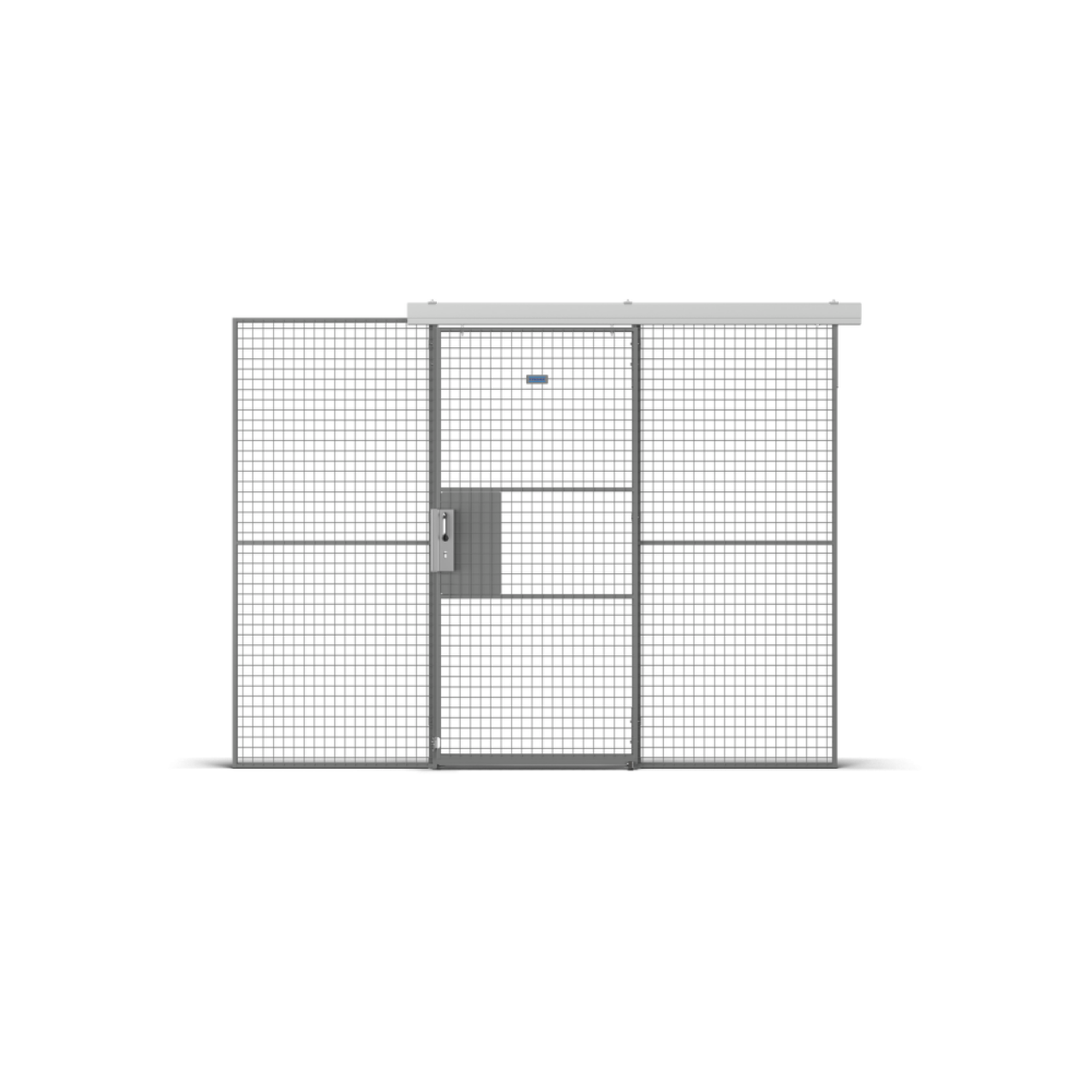

Carrier door

Our Carrier door uses a double-track rail to create a maximum opening at a minimum space. It consists of a wall panel and two door-leaf panels. When closed the first door leaf has carried the second door-leaf to the middle position and when fully opened the two door-leaf panels overlaps the wall panel at the same space in width.

There are 2 width options:

1. Door leaf 980+980 mm with wall panel 1000mm

2. Door leaf 1180+1180 mm with wall panel 1200 mm

Opening height is 2200 mm. Lock options are padlock, euro cylinder and assa cylinder. The runners above the door-leaf panels slide in a double-track aluminium top rail and guide rails beneath the door-leaf panels steer them firmly in the right direction.

Linear Sliding Door

When you need a door with a clear opening height, you need our Linear Sliding Door. The design is such that no overhead track is required - therefore there is no headroom restriction. The linear sliding doors run on roller bearings at the top and bottom of the door panel, creating an opening with free access in height. The linear sliding door is built from our UX450 panels to fit your specific needs. The doors can be ordered partly pre-assembled from the factory, or as separate panels, posts and door kit for assembly on site.

Standard door widths are from 2500 mm to 4250 mm and opening heights are from 2200mm to 4400 mm.

Lock options are padlock, euro cylinder and assa cylinder.

Options: Lock types

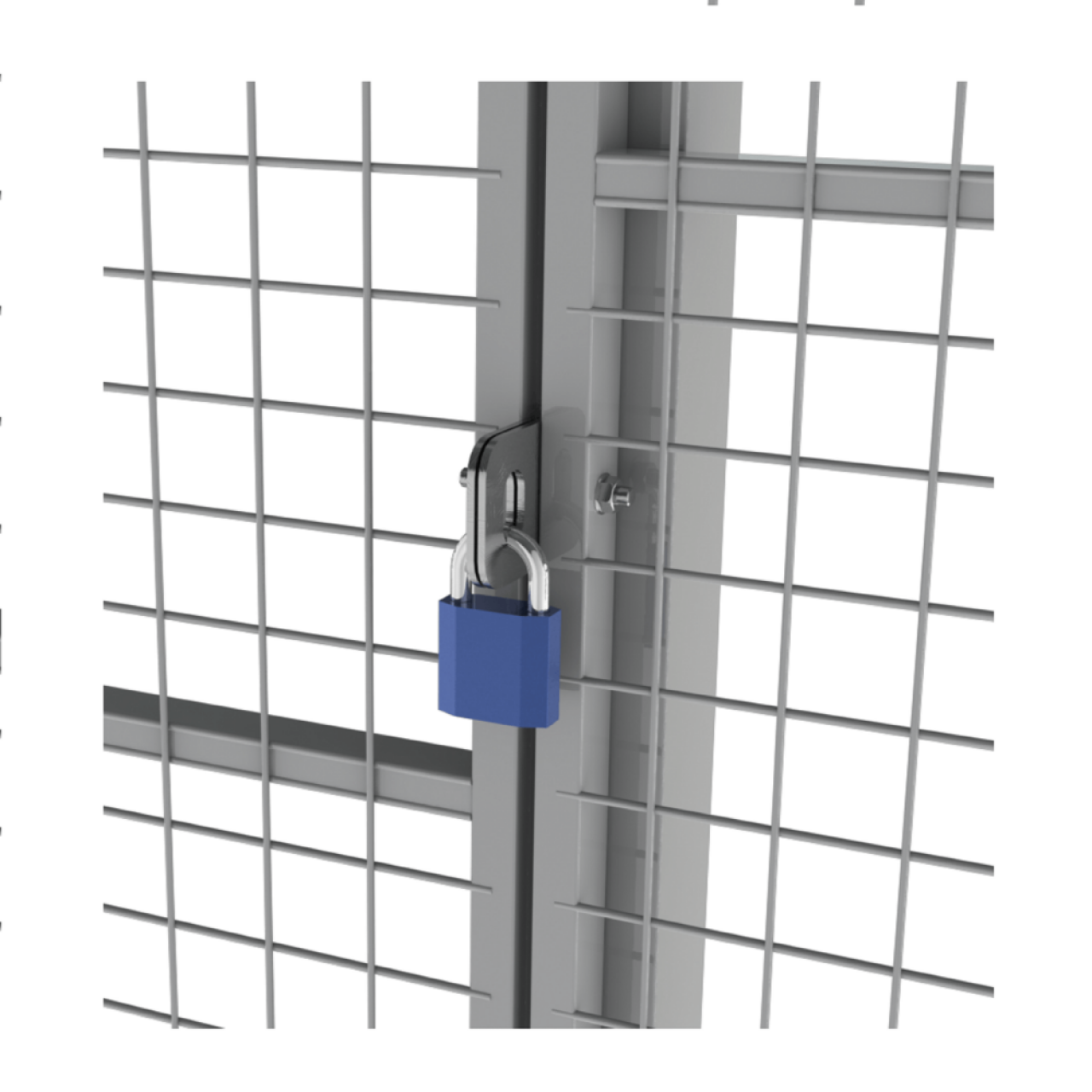

Padlock

Securing plates are bolted into the door leaf and the adjacent panel. Troax securing plates are compatible with most standard padlocks in different security classes.

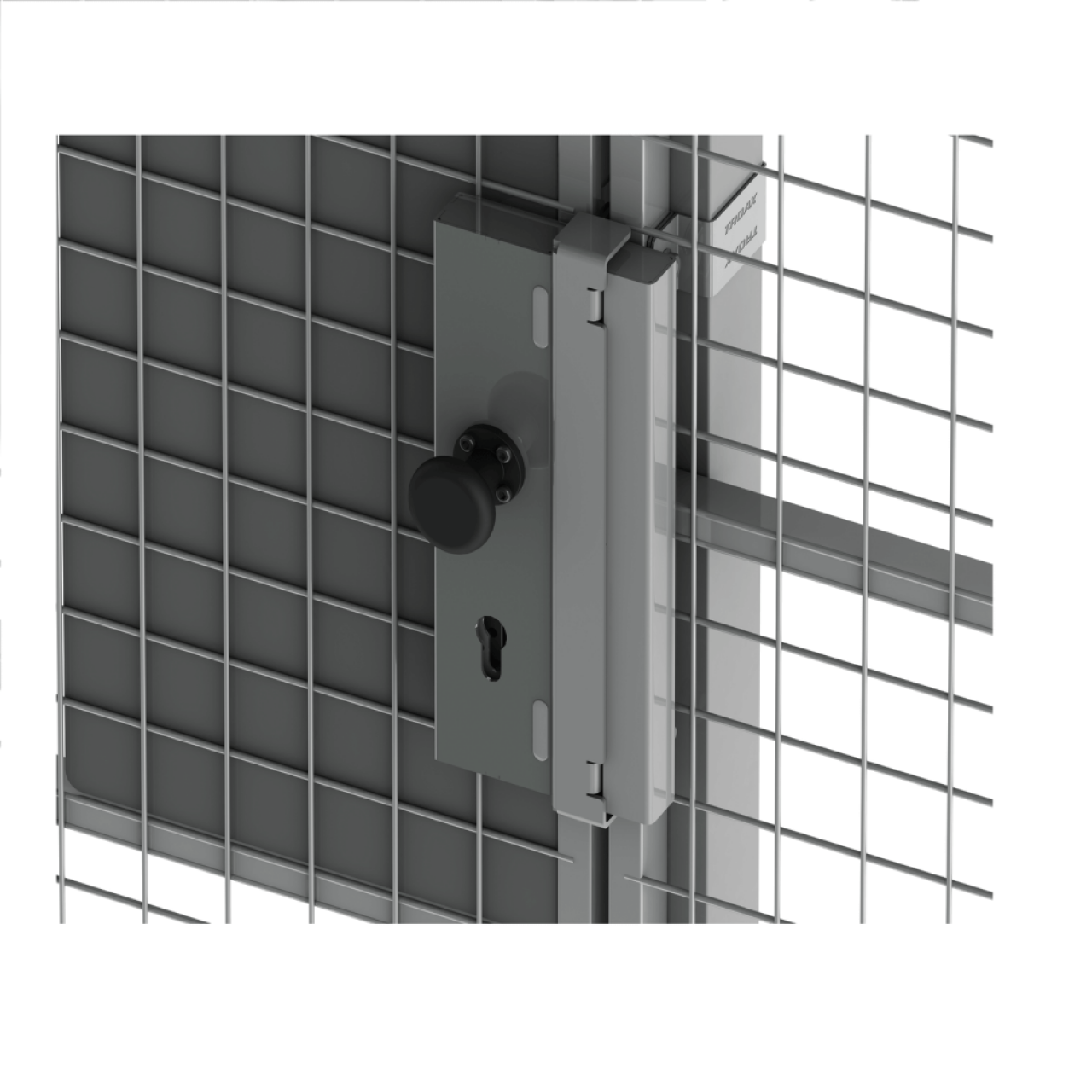

Cylinder lock

The casing of the cylinder lock is a strong metal locking tube. The euro cylinder version is equipped with a lock from SSF and the Assa version with Assa Connect 310/50.

The locking tube and the striking plate are reinforced with a welded steel cover to reduce the risk of tampering. The addition of hooks makes it impossible to open the door by pulling it sideways.

A cover plate mounted on the door leaf will prevent someone from reaching the inside of the lock & handle through the mesh.

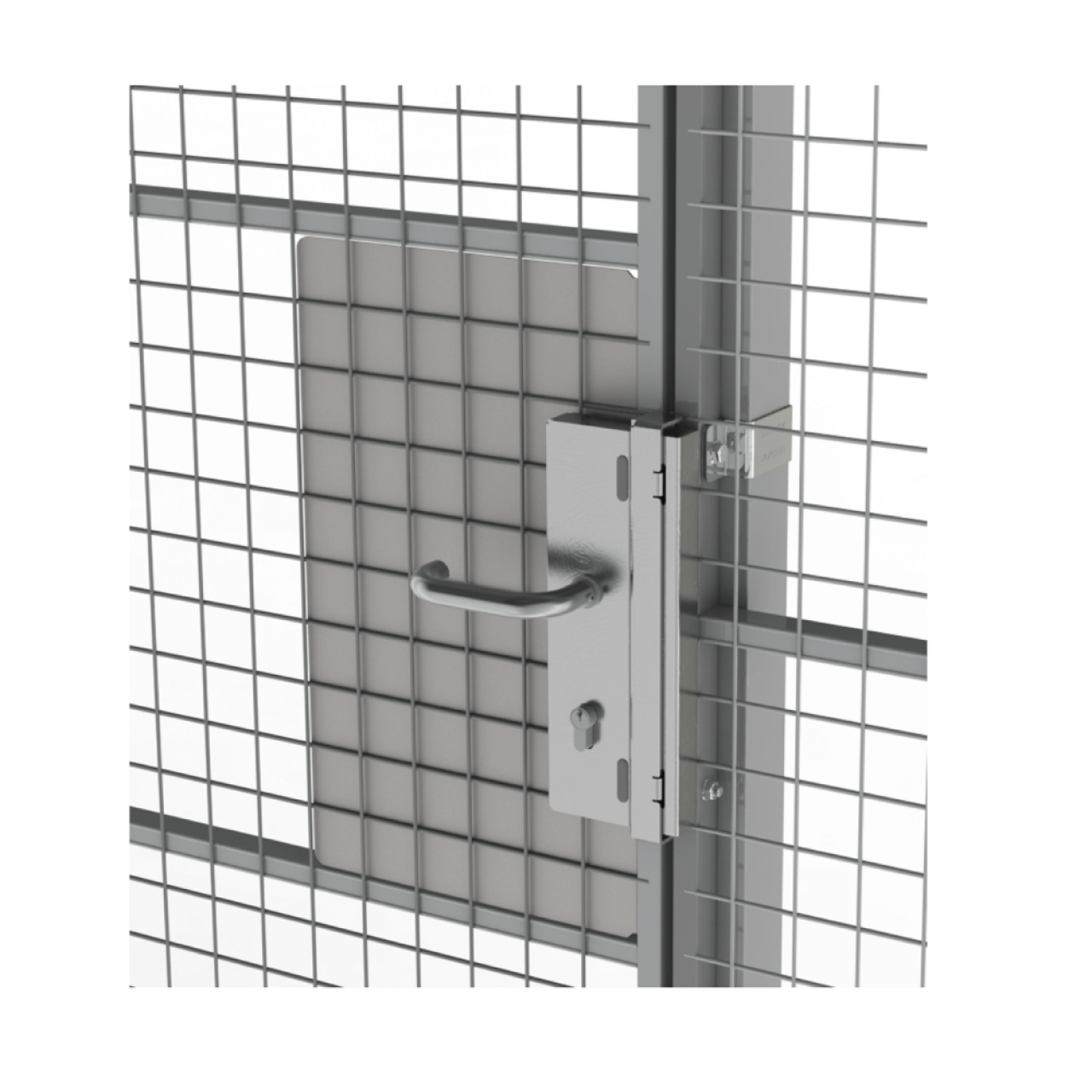

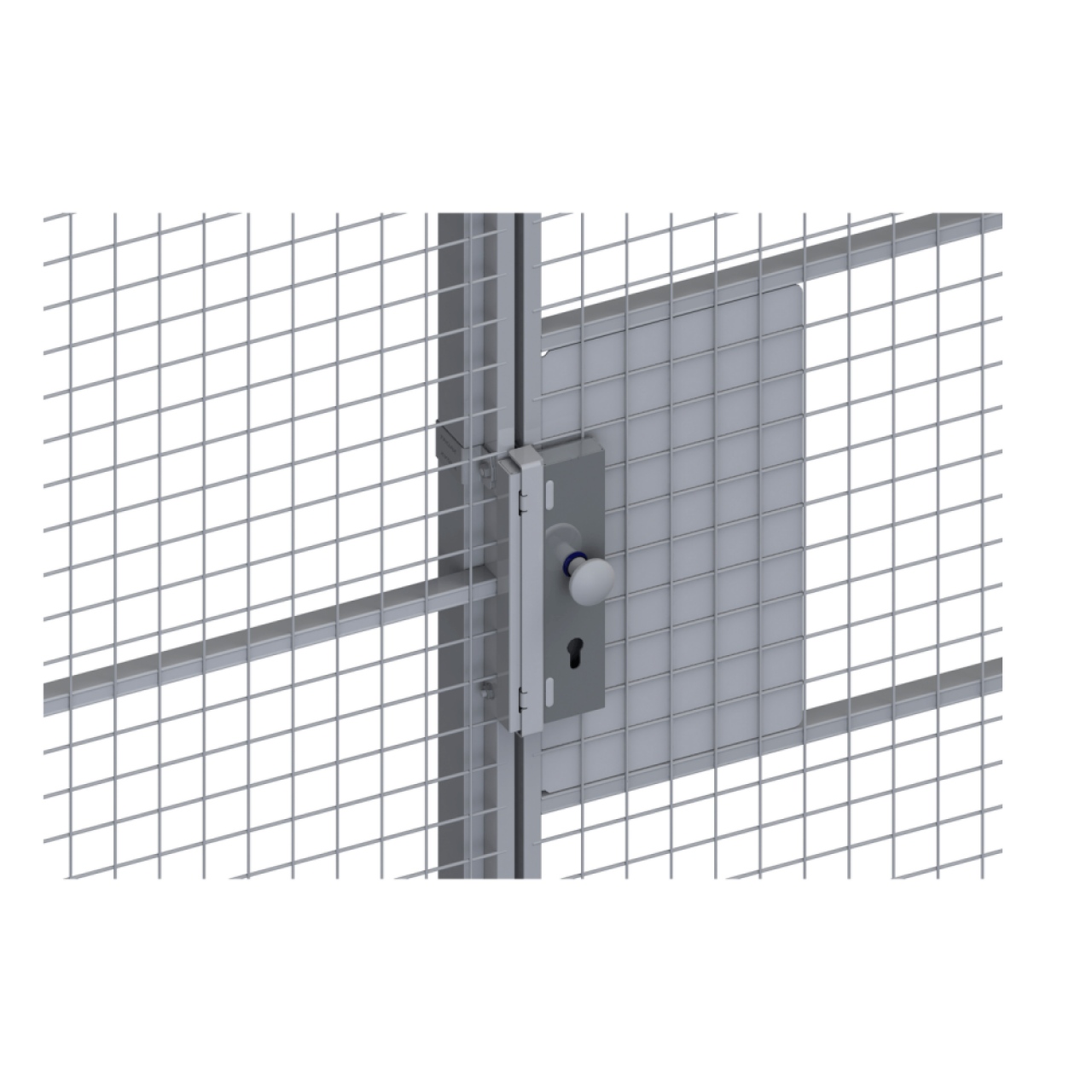

Knob and Handle

The Knob and Handle is an accessory kit compatible with our euro cylinder lock. It works both for hinged doors and sliding doors. A key is always needed from the outside to open the latch as the knob can't be turned. But from the inside, the handle opens an unlocked door for safe exit.

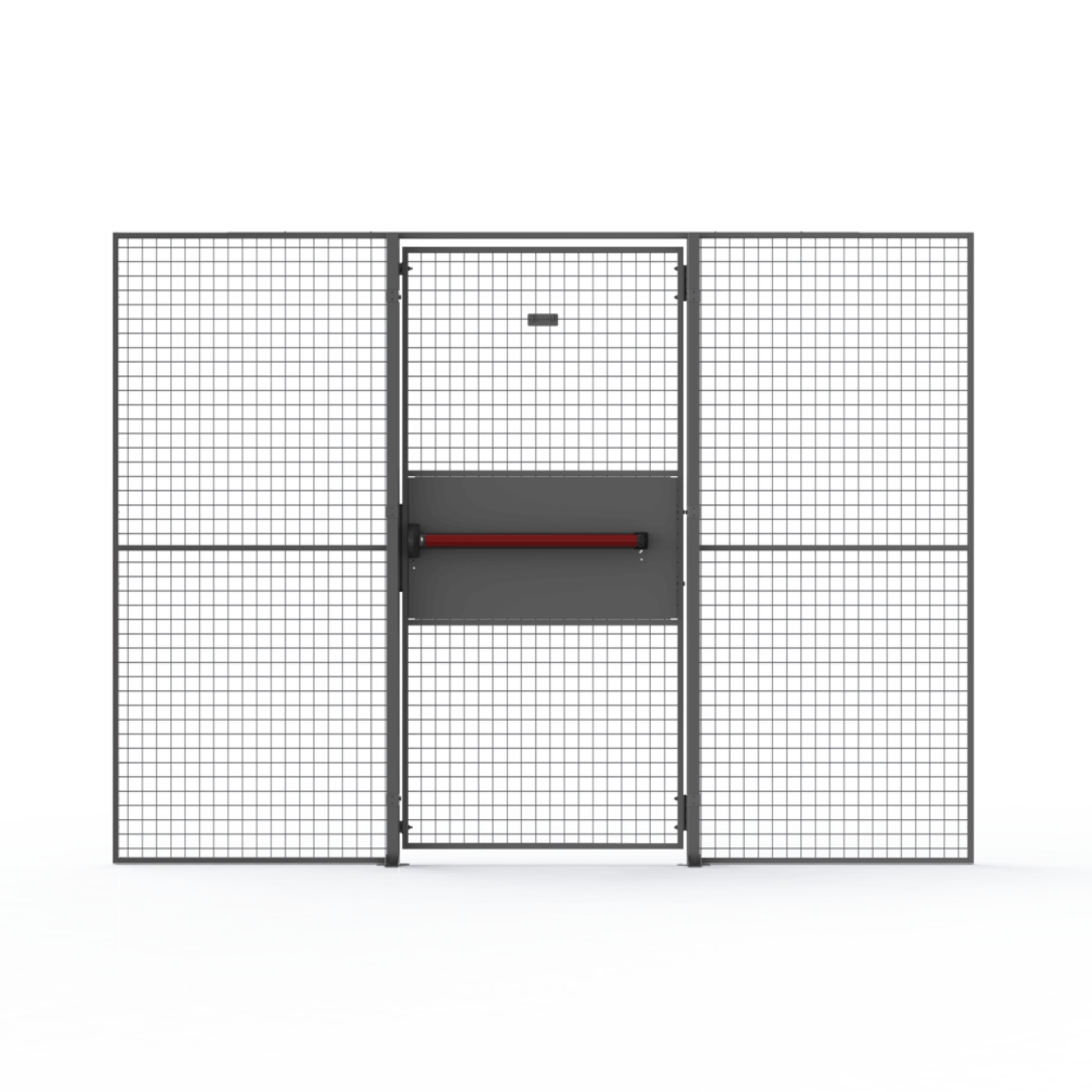

Panic bar

Employers always have the responsibility of creating a working environment that is safe and secure for employees. Troax can with our door with Panic bar help companies achieve this with a safety solution for exit routes. It is designed for use with hinged single doors of our mesh partitioning system. Possible door widths are 1000 mm and 1200 mm.

The Panic Bar assembles onto the door in a similar way to Troax Partitioning doors fitted with Euro profile cylinder locks.

The Panic Bar is CE marked in accordance with 89/106/EEC DIRECTIVE issued by ICIM and certified according to EN 1125. The door will fulfil many of the Performace Characteristics stated in both EN 1125 for panic exit devices and EN 179 for emergency exit devices.

Electromagnetic lock

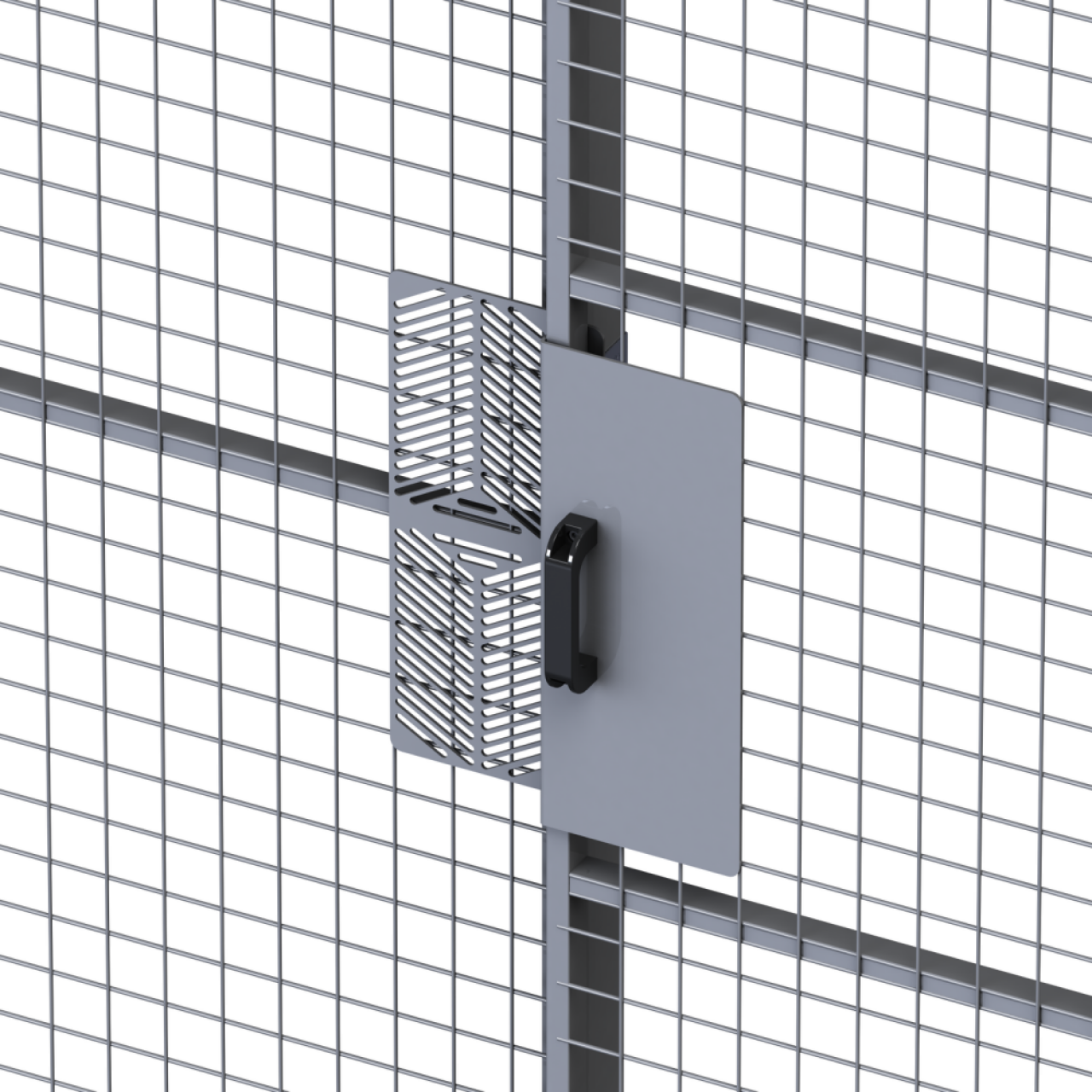

With Troax electromagnetic lock solution you will get a very cost-efficient solution, compatible with a tag/code/card system, for a sliding door.

Our Kit 7910 Magnet sliding door includes a door anchor bracket, a magnet bracket, a guide distance bracket, a handle and bolts & nuts. The door magnet is not included in the door kit and must be added.

Compatible door magnets are:

CDVI V1SR, 180kg, 12/24Vdc,
CDVI V3SR, 300kg, 12/24Vdc (available on stock),
ABB Magne, 150kg, 24Vdc.

All magnets are fail unlocked.

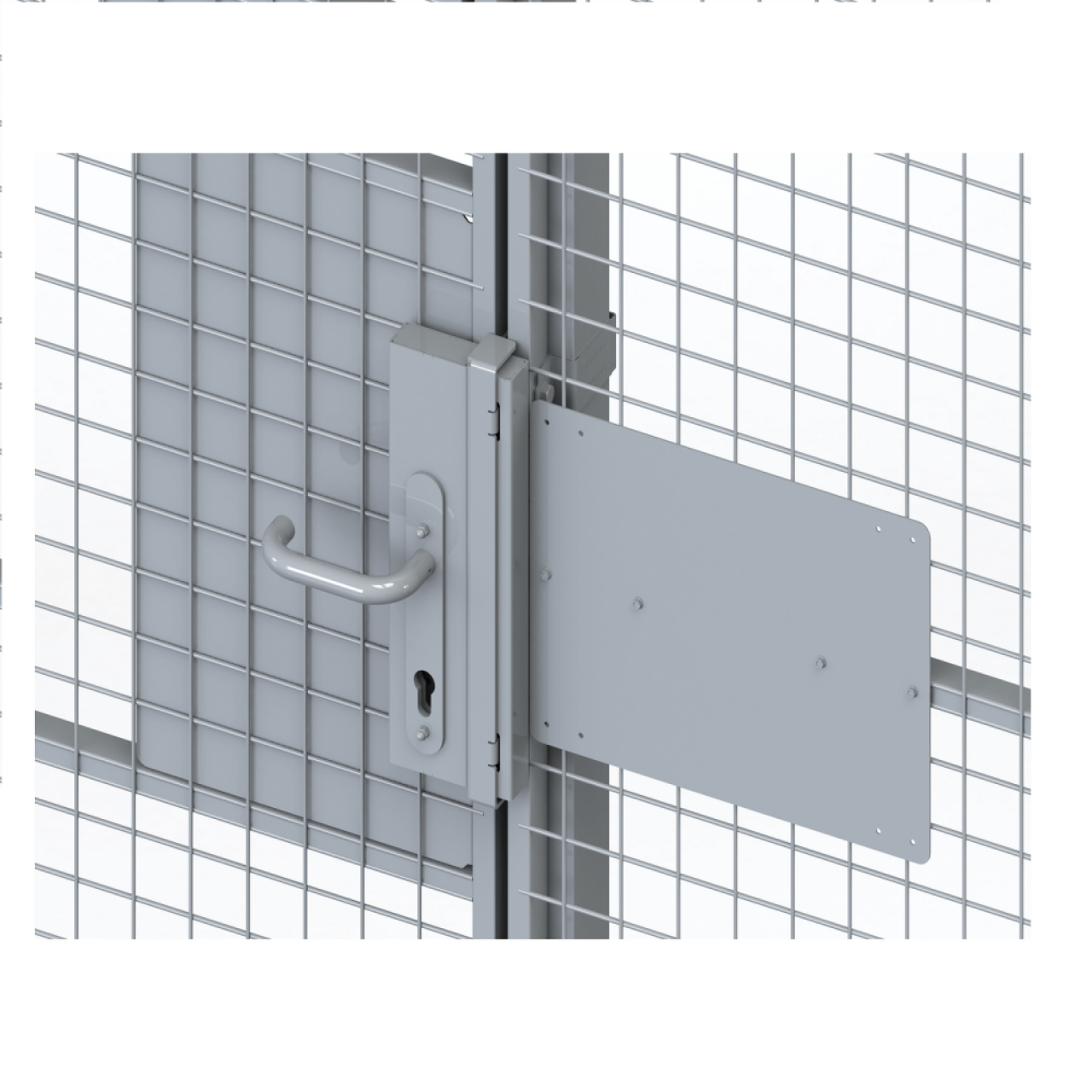

Electrical strike

An electrical strike is a good option when you need an electrical keyless control of your door. For example together with a tag/code/card system.

Our electrical strike kit includes the lock, lock tube, end sheet tube, brackets for the electric strike, handle, hinges and door stops (only for hinged door).

The door leaf, cover sheet and the actual electric strike must be added separately to have a complete door.

Abloy EL460

When combining our warehouse partitioning single or double hinged outwards opened doors with Kit 8450 Abloy EL460, the features and possibilities of the door will increase a lot. The lock Abloy EL460 is combined with split function for an emergency exit from the inside and is approved in accordance with standard EN 179. Additional, as EL460 is an electric lock, it can be controlled with a tag/code/card system.

We recommend adding our preassembly service of this door, but keep in mind that an electrician is still needed on site.

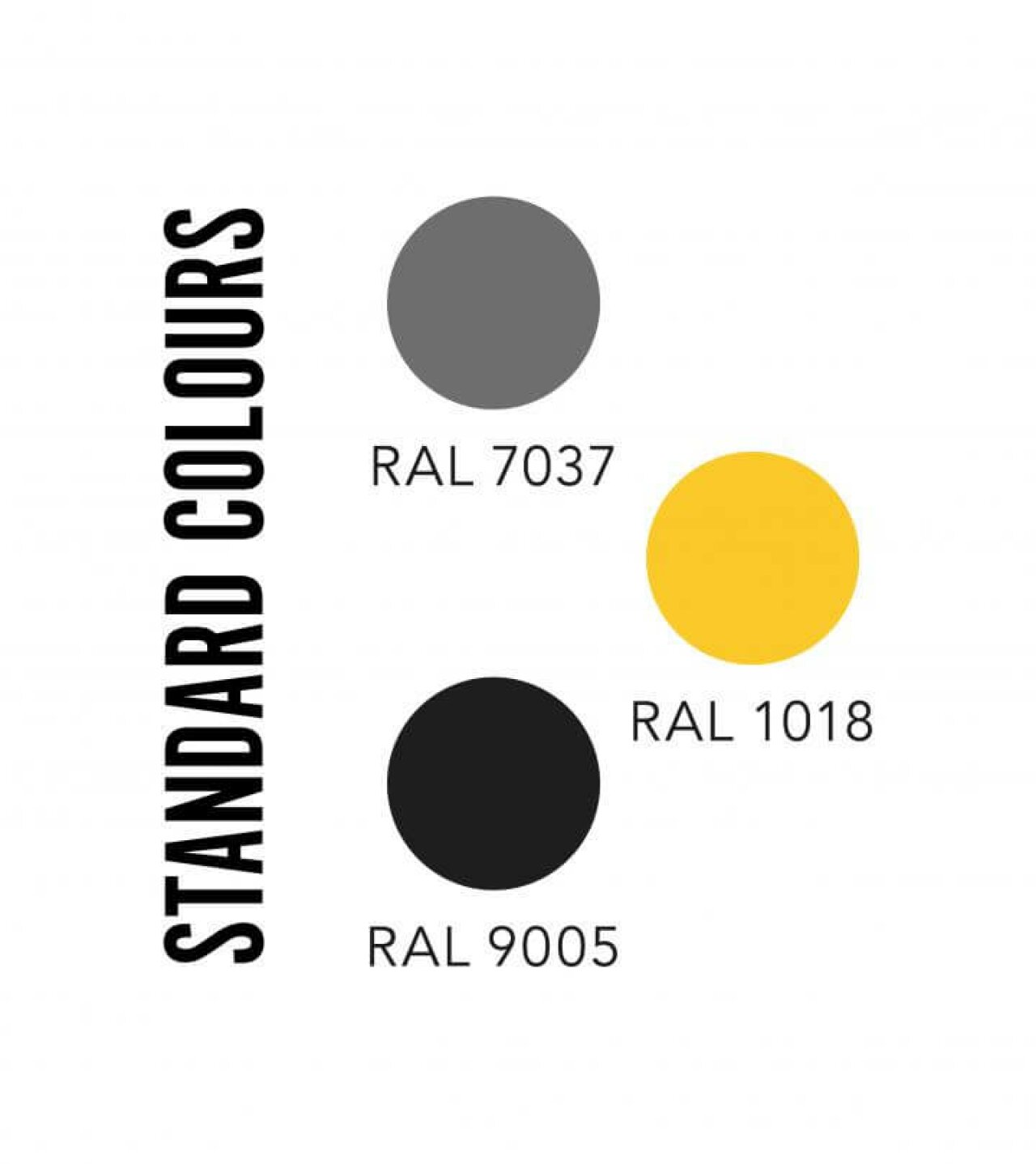

Colour Options:

Add some colour!

Our standard colours include RAL 7037, RAL 1018, RAL 9005. But all our mesh partitioning panels can be painted at the Troax production plant, in any RAL colour. You can choose your specific colour on your safety walls to strengthen your company profile. Just keep in mind that rules and safety requirements for industrial settings with machines and automated processes are stringent. The colour of mesh panels surrounding a robot or machine must allow good supervision. This is why most customers still choose our standard colour grey, as it is the easiest to see through.

Our Process

Starting a mesh partitioning project can seem like a daunting prospect so we’ve made the process as simple and reassuring as possible to ensure minimal impact to your existing workflows.

01

Survey & Consultation

Ideally, we begin with a survey of your premises, enabling us to see how you work, take measurements and discuss different options in person with you. However, if this isn’t possible then we can normally gain most of the information needed over the phone.
